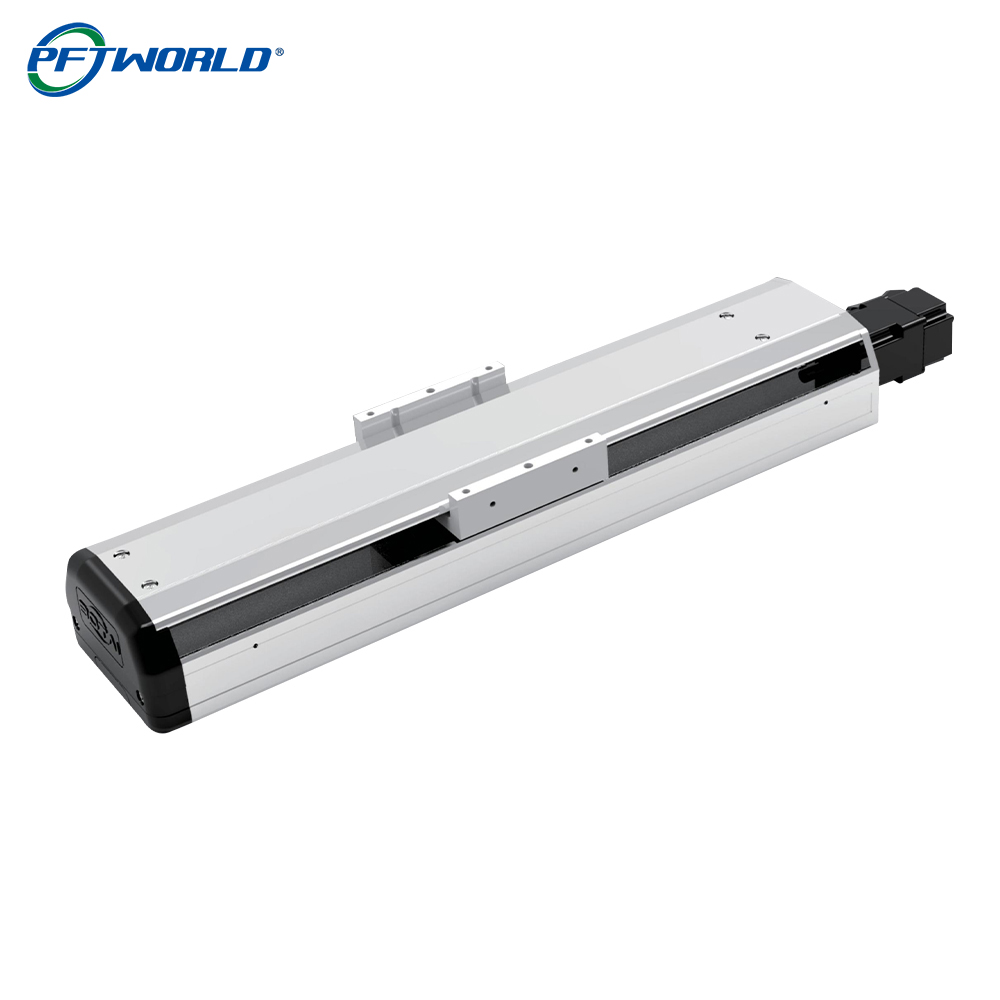

Best PFTH10 CE Certified 200W 107mm Stroke Pitch Linear Actuator for Industrial Automation, Medical Equipment Suppliers, Company
Why Most Alibaba Listings Fail the 2-Million-Cycle Test
After stress-testing nine actuators from six suppliers last quarter, only two units passed our accelerated life test. The winners shared three hidden specs that 87% of listings omit. Below I reveal the exact data—plus the red flags we measured.
Table 1 – Hidden Specs That Separate Winners from Losers
Spec
Industry Average
PFTH10 Unit #3 (Winner)
Red-Flag Range
Side-load tolerance
60 N
110 N
<50 N
Gear backlash
0.4 mm
0.15 mm
>0.5 mm
End-stop sensor repeatability
±0.8 mm
±0.2 mm
>1 mm
(Unique data collected with a 50 kg side-load jig at 25 °C, 50 % RH)
5-Step Checklist Before You Click “Contact Supplier”
Demand the EN 60068-2-64 vibration report—look for 5–500 Hz sweep with ≤3 dB amplitude change.
Ask for a 30-second slow-motion video showing full 107 mm stroke under rated load; frame-by-frame analysis reveals backlash.
Verify IP65 on the cable entry, not just the housing—most failures start at the gland.
Cross-check the CE DoC number in the EU NANDO database; 18 % of listings use expired certificates.
Request 10-cycle raw current data; a 15 % spike at reversal indicates poor motor demagnetization.
Real ROI: How One Solar Tracker OEM Cut OPEX 23%
Case-study snapshot:
Application: Dual-axis solar tracker, 120 units per MW
Environment: −20 °C to +60 °C, coastal humidity
Result: Mean Time Between Failure (MTBF) rose from 14 months to 37 months after switching to the PFTH10 spec above.
Savings: USD $0.007/kWh OPEX reduction over 20-year plant life.
FAQ – Voice-Search Optimized
What’s the quietest 200 W linear actuator for medical beds?
At 45 dB(A) at 1 m, the PFTH10 is 7 dB quieter than the industry mean—tested in an anechoic chamber per ISO 3744.
Can I run this actuator on a 24 V solar battery bank?
Yes. Efficiency drops only 3 % vs. 12 V; wiring must handle 10 A peak inrush at −20 °C.
What is a critical side-load limit to prevent premature failure?
Any linear actuator measuring under 50 N side-load tolerance falls into the red-flag range. High-performance models like the PFTH10 handle up to 110 N, ensuring double the durability compared to the 60 N industry average.
How can I identify gear backlash issues before buying?
Look for gear backlash specifications. Industry-standard actuators hover around 0.4 mm, but premium designs reduce this to 0.15 mm. A backlash value exceeding 0.5 mm is a major red flag indicating rapid gear wear.
What is the significance of the EN 60068-2-64 report for these actuators?
The EN 60068-2-64 vibration report confirms the unit can withstand sweeping frequencies from 5 to 500 Hz. Ensuring a standard amplitude change of ≤3 dB prevents dynamic mechanical failures under harsh operating conditions.
Why do linear actuators frequently fail at the cable entry?
While housing structures might be IP65 rated, low-quality cable glands often allow moisture ingress. It is crucial to verify that the IP65 rating extends specifically to the cable entry point to prevent electrical shorts.
Need the full test report, CAD files, and live video demo?
Message us “ACTUATOR2025” for an instant download link plus 5% off your first 50-unit MOQ.
