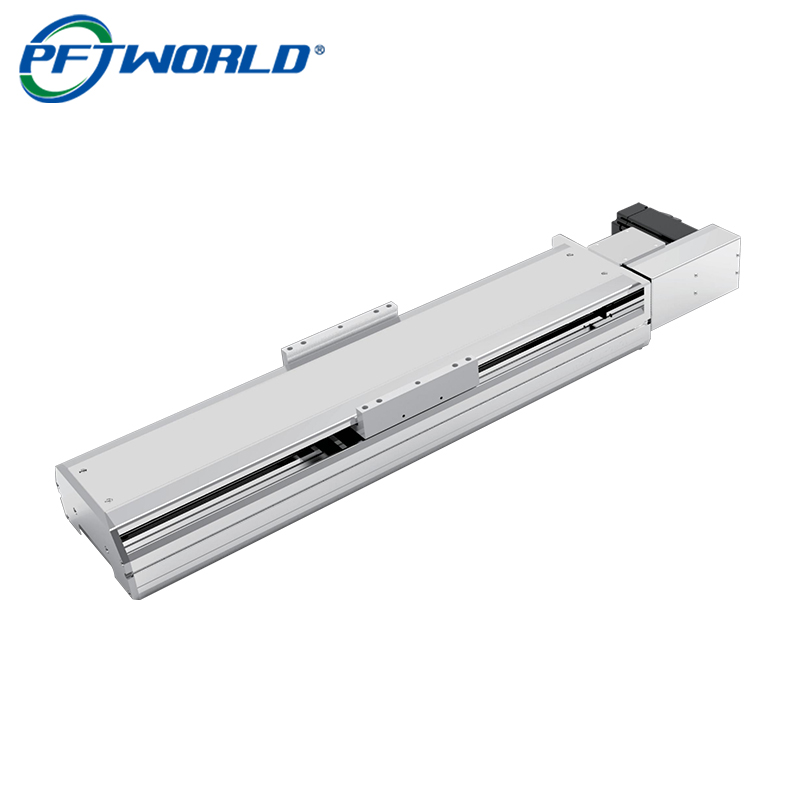

Custom Belt Drive Linear Actuator / 1 Axis Linear Stage / Motorized Slide Table is a heavy-duty, high-power, long-stroke linear motion system, specially developed for industrial automation, CNC machinery, gantry robots, and high-load transfer equipment.
Equipped with 400W high torque motor + reinforced timing belt drive + precision linear guide rails, it provides:
Designed for OEM equipment manufacturers and automation system integrators.
Perfect for large machines and heavy-duty tasks.
Compared with ball screw:
Best solution for long travel automation systems.
Ensures:
Supports:
100% OEM / ODM available.

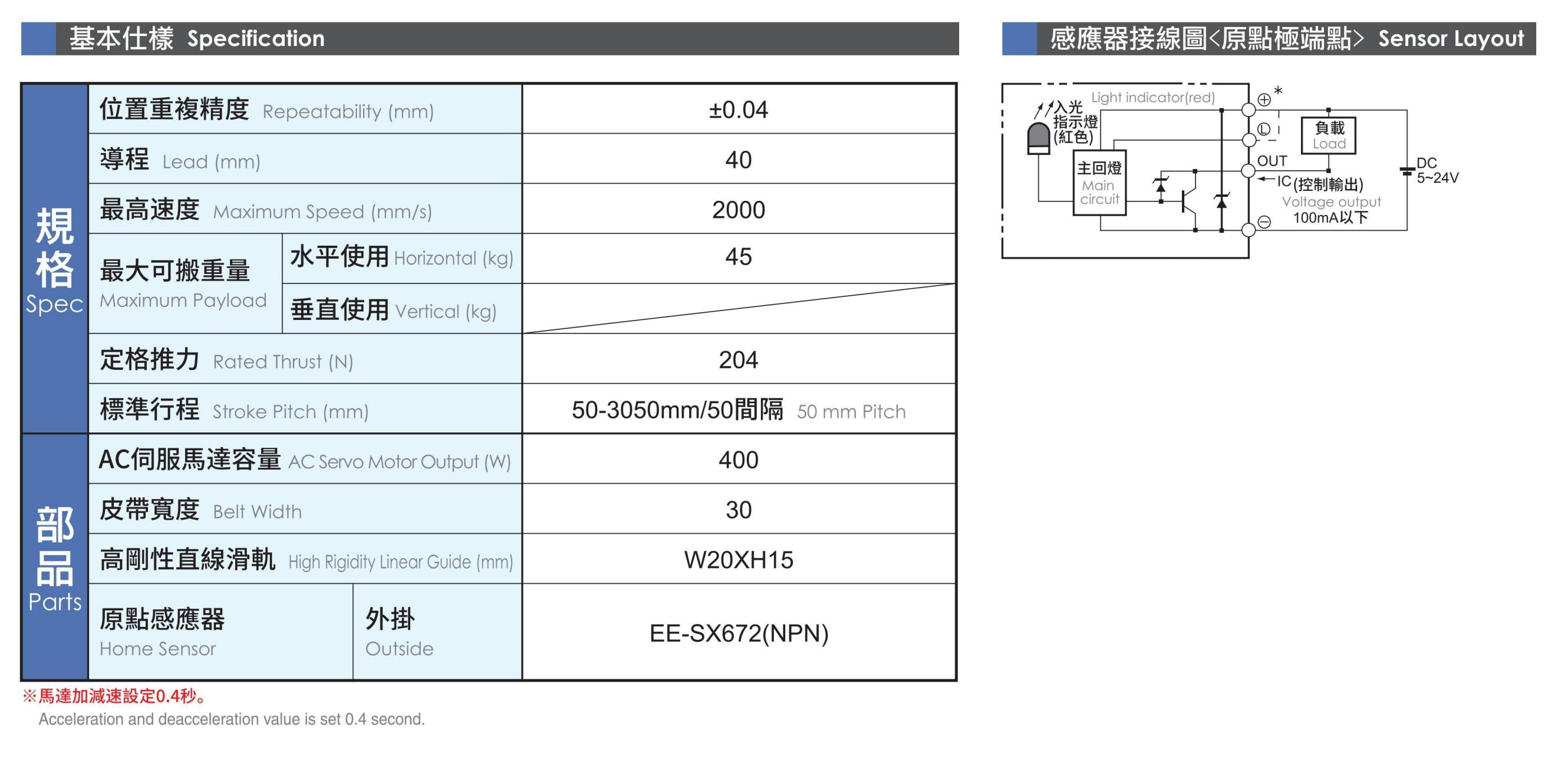

| Item | Specification |
|---|---|
| Product Name | Belt Drive Linear Actuator |
| Type | 1 Axis Linear Stage / Slide Table |
| Drive Mode | Reinforced Timing Belt |
| Motor Power | 400W (Customizable) |
| Stroke | Custom Long Stroke |
| Max Speed | Up to 2000–3000 mm/s |
| Repeat Accuracy | ±0.03–0.05 mm |
| Load Capacity | High Load / Heavy Duty |
| Guide Rail | Precision Linear Guide |
| Body Material | High Strength Aluminum Alloy |
| Installation | Horizontal / Vertical / Gantry |
| Application | Automation / CNC / Robot |
*(Custom specifications available)
Widely used in:
Perfect for industrial grade motion control systems.
We provide:
Tell us your requirements:
Our engineers provide professional solutions within 24 hours.
Yes. With reinforced belt and high power motor, it supports heavy-duty industrial applications.
Yes. Long stroke solutions are available.
Yes, servo and stepper motors both supported.
Yes, 2D/3D CAD files provided.
We are 100% manufacturer with our own workshop.
Looking for:
Linear Actuator Manufacturer | Belt Drive Linear Stage Factory | Heavy Duty Slide Table Supplier | OEM Linear Motion SystemSend us inquiry today to get:
We help you build stronger & smarter automation systems.
