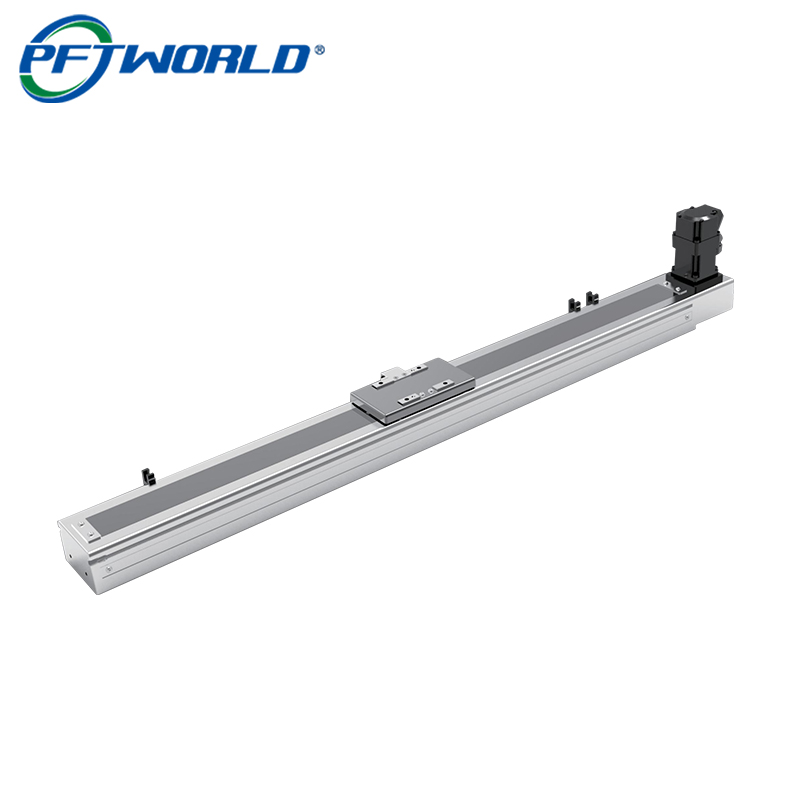

This Mini Belt Driven Linear Actuator / Single Axis Linear Module / Motorized Slide Table is a compact, high-speed, high-precision linear motion system specially designed for CNC automation equipment, pick & place systems, robotic platforms, and industrial machinery.
Driven by timing belt transmission + precision linear guide, it achieves:
Perfect replacement for ball screw linear stage in long travel and high-speed applications.
Belt drive transmission enables:
Supports:
Easy integration with PLC / CNC controller.
Flexible travel range:
Fully customizable.
| Item | Specification |
|---|---|
| Product Name | Mini Belt Driven Linear Actuator / Linear Module |
| Drive Type | Timing Belt Drive |
| Axis | Single Axis |
| Max Speed | 1600 mm/s |
| Repeat Positioning Accuracy | ±0.04 mm |
| Stroke Range | 50–2550 mm (Customizable) |
| Motor Power | 100W |
| Motor Type | Servo / Stepper Optional |
| Guide Rail | Precision Linear Guide |
| Body Material | Aluminum Alloy |
| Load Capacity | Depends on model |
| Installation | Horizontal / Vertical |
| Application | CNC / Automation / Robotics |
Widely used in:
Suitable for OEM equipment manufacturers & automation integrators.
Serving USA, Germany, Japan, Korea, Southeast Asia customers.
We support:
Send us your drawing or application → We provide solution within 24h.
Belt drive is better for high speed & long stroke; ball screw is better for ultra-high precision. For most automation, belt is more cost-effective.
Yes. Servo, stepper or closed-loop motors are all available.
Yes. From 50mm to 2550mm or more.
Yes. 2D/3D drawings are available.
1 piece supported for testing.
Looking for Mini Linear Actuator / Linear Module / CNC Slide Table / Linear Stage Manufacturer?
Send inquiry now to get:
Let’s build your automation system together.
