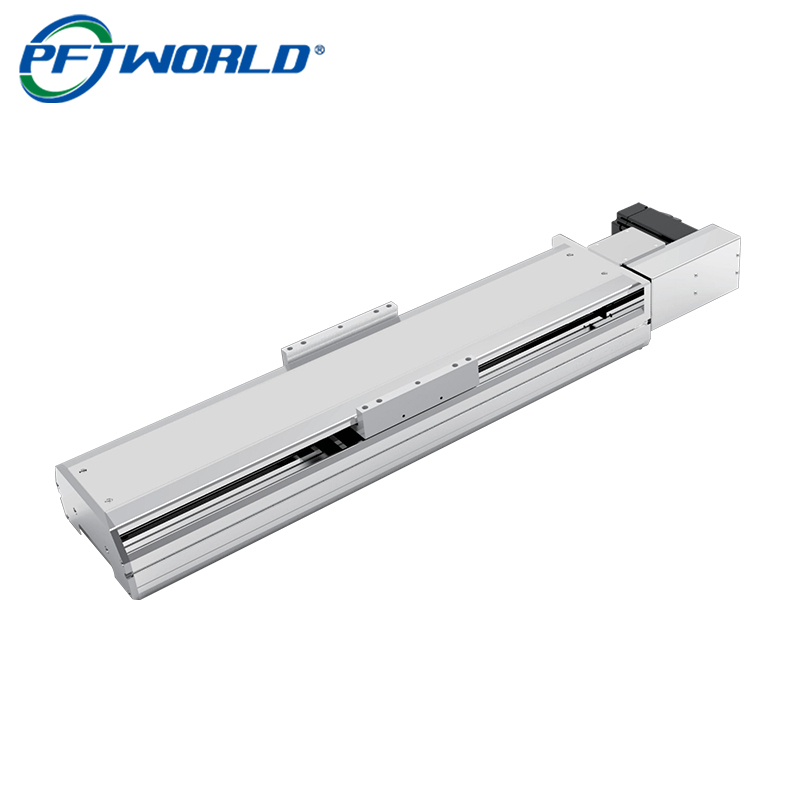

This Compact Belt Driven Linear Actuator / Single Axis Linear Module / Motorized Linear Slide Table is a high-speed, long-stroke, heavy-duty linear motion system, specially engineered for CNC automation, industrial robots, pick & place equipment, and intelligent manufacturing lines.
Powered by 200W motor + reinforced timing belt transmission + precision linear guide, the module delivers:
It is an ideal solution to replace traditional ball screw linear stage in high-speed and long-distance applications.
Belt transmission provides:
±0.04mm Repeatability:
Robust motor drive:
Space-saving structure:
50–3050mm Travel:
Industrial grade build:
| Item | Specification |
|---|---|
| Product Name | Compact Belt Driven Linear Actuator |
| Type | Single Axis Linear Module / Linear Stage |
| Drive Method | Timing Belt Drive |
| Motor Power | 200W |
| Max Speed | 2000 mm/s |
| Repeat Positioning Accuracy | ±0.04 mm |
| Stroke Range | 50–3050 mm (Customizable) |
| Guide Rail | Precision Linear Guide |
| Body Material | Aluminum Alloy |
| Installation | Horizontal / Vertical / Gantry |
| Control | Servo / Stepper / PLC / CNC |
| Application | Automation / CNC / Robotics |
Widely used in:
Suitable for OEM manufacturers, automation integrators, and machine builders.
Support:
We provide full customization:
✉ Send your drawings or requirements → Professional solution within 24 hours
Belt drive is better for high speed & long stroke. Ball screw is better for ultra-high precision. For most automation applications, belt drive is more cost-effective.
Yes, servo or stepper motors are both available and compatible with our systems.
Yes. We can customize the stroke length up to 3050mm or more depending on your requirements.
Yes, 2D and 3D CAD files are available upon request to assist with your integration design.
Our minimum order quantity is 1 piece, making testing and prototyping highly accessible.
The module is constructed from high-strength aluminum alloy, ensuring a lightweight, robust, and corrosion-resistant body.
