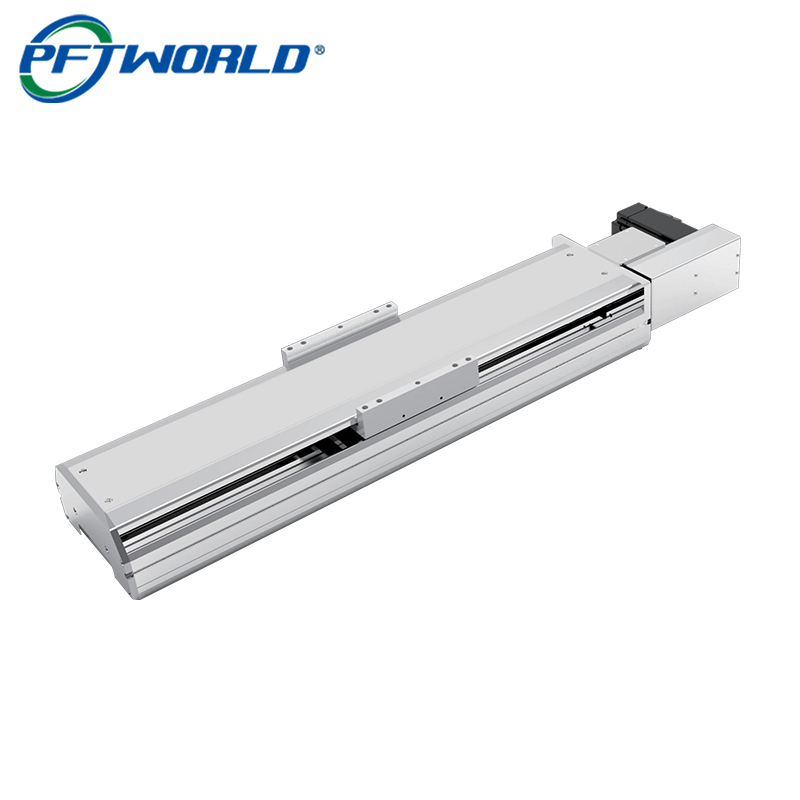

This 200W Belt Driven Linear Actuator / Single Axis Linear Module / CNC Linear Slide Table is a high-speed, long-stroke, compact linear motion system designed for industrial automation, CNC equipment, robotics, and intelligent manufacturing lines.
By combining reinforced timing belt drive + precision linear guide rail + high power motor, it achieves:
It is an ideal alternative to traditional ball screw linear stages for long-distance and high-speed transmission.
Compared with ball screw:
Perfect for high-speed automation production lines.
Suitable for precision assembly, inspection, and pick & place tasks.
Ensures reliable and continuous industrial use.
Supports:
Ideal for large equipment & long travel systems.
Suitable for compact machines and limited spaces.

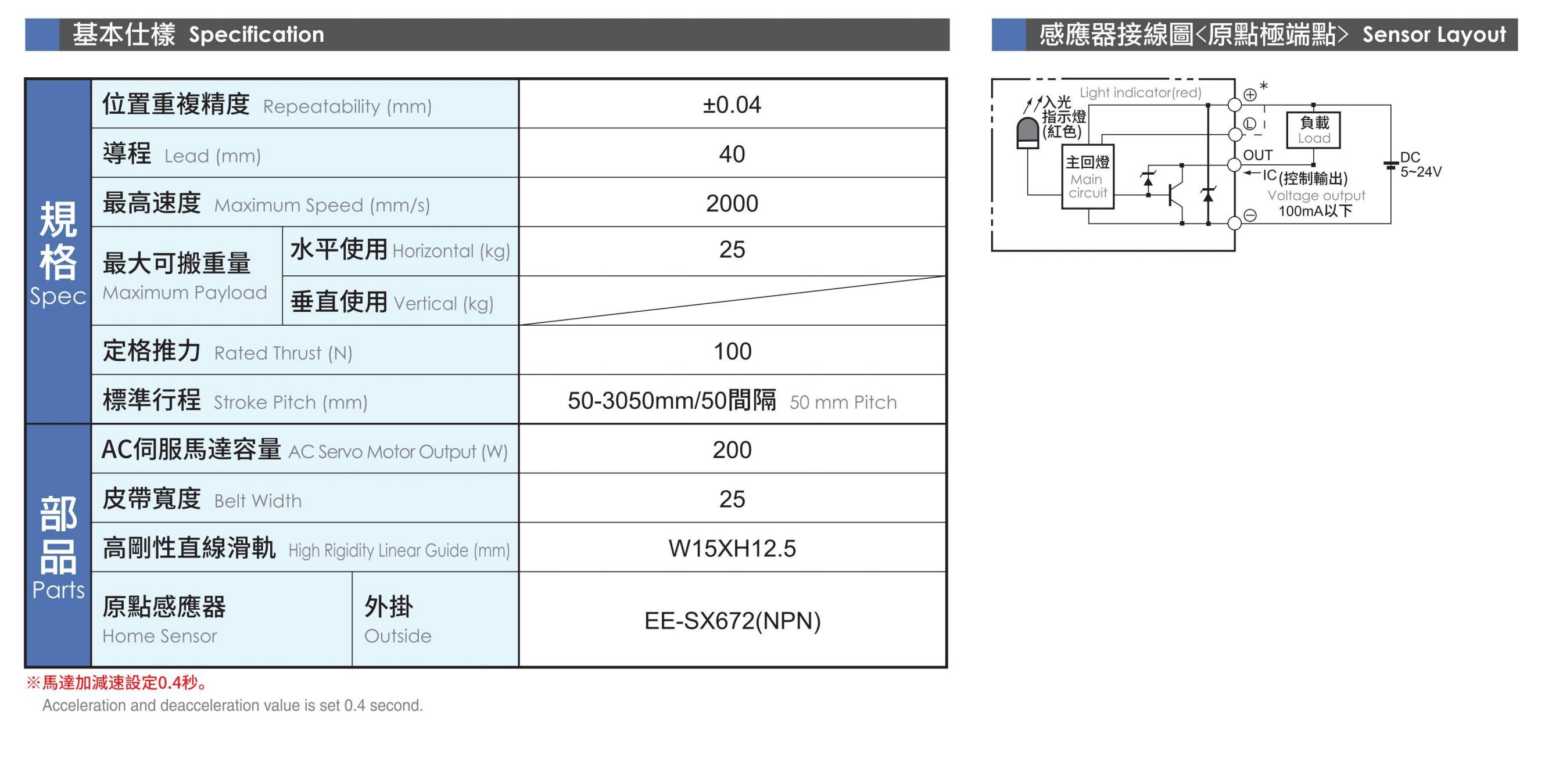

| Item | Specification |
|---|---|
| Product Name | Belt Driven Linear Actuator |
| Type | Single Axis Linear Module / Linear Stage |
| Drive Method | Timing Belt Drive |
| Motor Power | 200W |
| Max Speed | 2000 mm/s |
| Repeat Position Accuracy | ±0.04 mm |
| Stroke Range | 50–3050 mm (Customizable) |
| Guide Rail | Precision Linear Guide |
| Body Material | Aluminum Alloy |
| Installation | Horizontal / Vertical / Gantry |
| Control System | Servo / Stepper / PLC / CNC |
| Service Life | Long life, maintenance-free |
This linear module is widely used in:
Ideal for machine builders, automation integrators, and OEM manufacturers.
We support:
Perfect for prototype or bulk orders.
Tell us your requirements:
Our engineers provide solutions within 24 hours.
For high speed and long stroke, belt drive is faster, lighter, and more economical. Ball screw suits ultra-high precision.
Yes, servo or stepper motor both supported.
Yes, from 50mm to 3050mm or longer.
Yes, 2D/3D drawings are available.
1 piece for testing is accepted.
