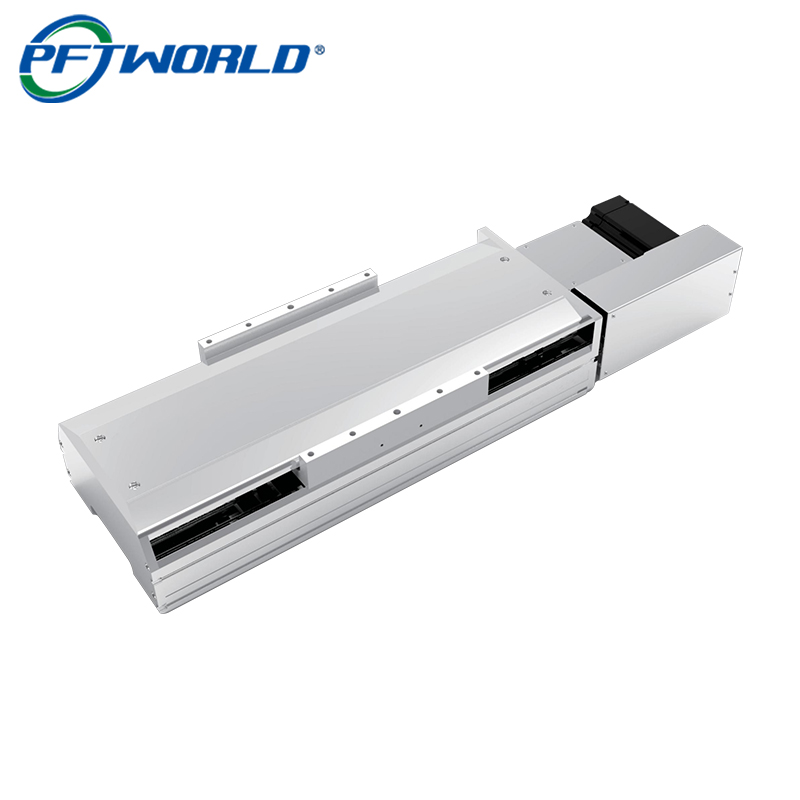

This 750W Linear Actuator Module / Electric Slide Table / Belt Driven Linear Stage is a high-power, long-stroke, heavy-duty linear motion system, specially engineered for industrial automation, CNC machinery, gantry robots, and high-load transfer equipment.
Powered by a 750W servo motor + reinforced belt transmission + precision linear guides, it delivers:
Ideal for heavy load, long travel, and continuous industrial operation.
Perfect for large automation systems.
Compared with ball screw systems:
Best choice for long-distance and high-speed linear motion.
Supports oversized automation projects.
Ensures: No vibration, no deformation, smooth positioning under heavy load.
Easy system integration.

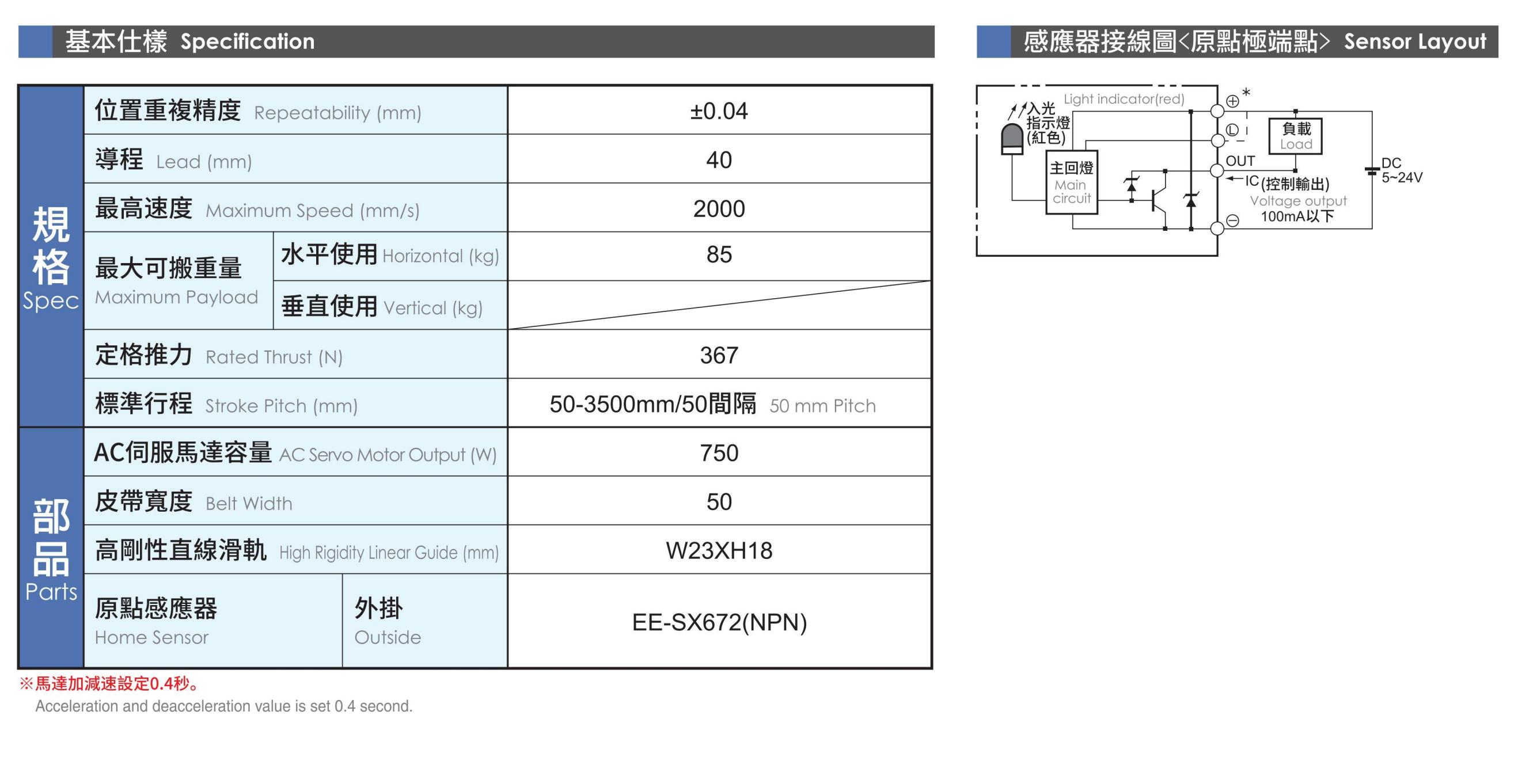

| Item | Specification |
|---|---|
| Product Name | Belt Driven Linear Actuator Module |
| Type | Electric Slide Table / Linear Stage |
| Axis | Single Axis |
| Motor Power | 750W Servo Motor |
| Drive Mode | Reinforced Timing Belt |
| Stroke Range | 50–3500 mm (Customizable) |
| Max Speed | 2000 mm/s |
| Repeat Accuracy | ±0.03–0.05 mm |
| Load Capacity | Heavy Duty / High Load |
| Guide Rail | Precision Linear Guide |
| Body Material | Aluminum Alloy |
| Installation | Horizontal / Vertical / Gantry |
| Control | Servo / PLC / CNC |
(Custom specs available)
Widely used in:
Perfect for OEM machine builders & automation integrators.
We support:
Provide complete automation solutions.
Tell us:
Our engineers offer professional solution within 24 hours.
Yes. Belt drive is the best solution for long travel and high speed applications.
Yes. With 750W servo motor and reinforced structure, it supports heavy-duty tasks.
Yes. Up to 3500mm or more.
Yes, 2D/3D CAD files available.
Yes, we are direct manufacturer with OEM/ODM service.
