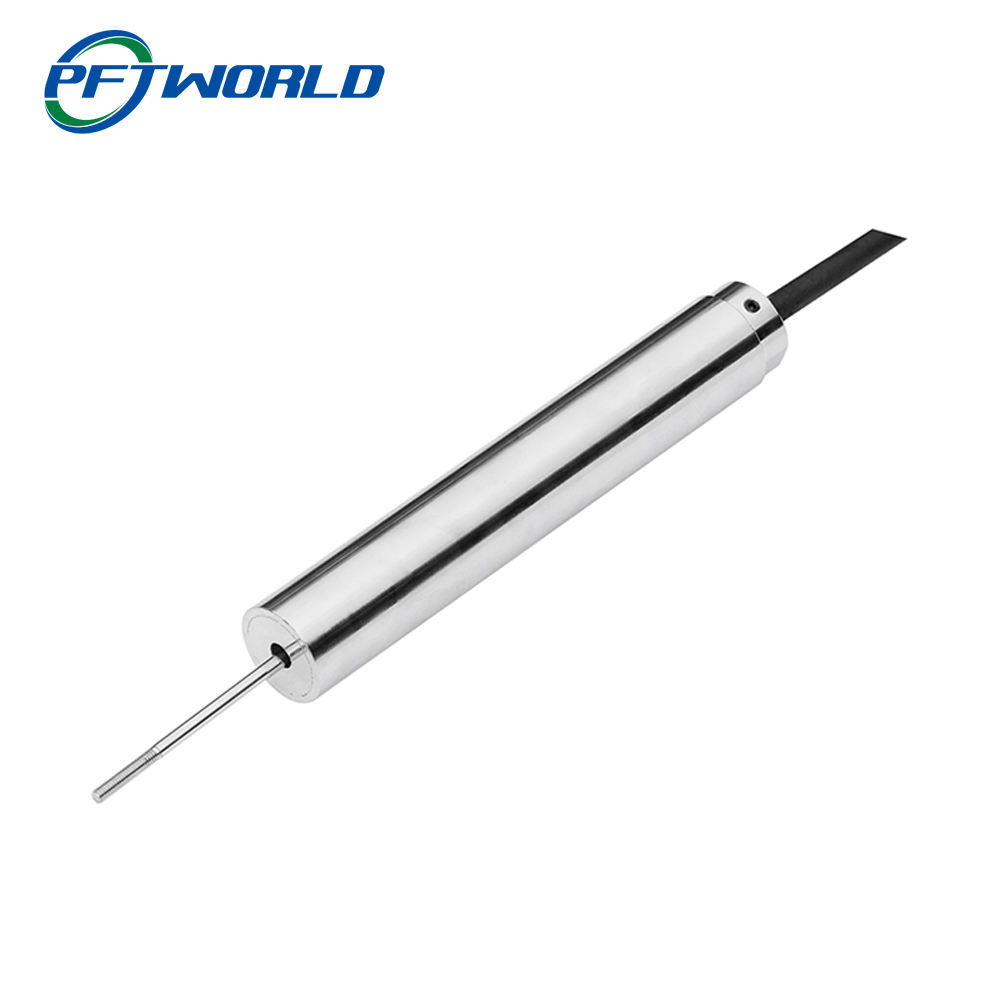

This premium LVDT Displacement Sensor delivers exceptional linear position measuring with 0.1% accuracy. Engineered for rigorous industrial monitoring, it ensures stable signal output in harsh conditions without wear.
-
✓
Unmatched Linearity Accuracy Ensuring Reliable Data For Your Critical Testing Projects.
-
✓
IP68 Waterproof Rating Allows Stable Long-term Performance In Submersible Conditions.
-
✓
Non-contact Inductive Technology Eliminates Internal Wear For Infinite Service Life.
-
✓
Miniature Cylindrical Design Fits Perfectly Into Space-constrained Industrial Areas.
-
✓
Standard DC 24V Power Supply Compatible With Most Modern Signal Processing Units.
-
✓
Robust Stainless Steel Housing Protects Internal Components From Harsh Environments.
-
✓
Fast Signal Response Frequency Ideal For High-speed Dynamic Displacement Tracking.
-
✓
Wide Operating Temperature Range From -25C To +85C Ensures Global Climate Adaptability.
-
✓
Zero-drift Signal Stability Maintains Precise Zero-point Calibration Over Long Terms.
-
✓
Customizable Stroke Lengths Up To 500mm To Meet Specific Measurement Requirements.
| Model |
SDVB20M - 5A |
| Input Power |
15 ~ 28 VDC |
| Operating Current |
Current of voltage output ≤ 12mA; 2-wire current output of 4 ~ 20mA, output of 4 ~ 20mA |
| Nominal Range |
0 - 5mm |
| Output |
0 ~ 10V, 4 ~ 20mA |
| Linearity Error |
±0.25%F.S |
| Repeatability Error |
≤ 10μm |
| Resolution |
≤ 1μm |
| Operating Temperature |
-25℃ ~ +85℃ |
| Thermal Coefficient |
Null position ≤ 0.01%F.S/℃ |
| Sensitivity ≤ 0.0025%F.S/℃ |
Our Advantages
FAQ
What payment methods are accepted?
We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat pay, and L/C accordingly.
How long is the production lead time?
For in-stock products, it usually takes about 7 to 10 days, depending on the ordered quantity.
Is customized logo printing supported?
Yes, we fully support customized logo integration according to your specifications.
How long does shipping and delivery take?
It typically takes 3 to 7 days for delivery when using express shipping methods.
How is product quality controlled?
Quality is monitored through a strict inspection framework:
- Material Inspection: Verification of material surfaces and rough dimensions.
- First Production Check: Ensuring critical dimension consistency during mass production.
- Sampling Inspection: Random quality validation before warehouse storage.
- Pre-shipment Inspection: 100% inspection performed by QC assistants before dispatch.
What is the procedure if poor quality parts are received?
Please send us detailed pictures of the parts. Our engineering department will analyze the issue, find appropriate solutions, and remake the parts for you as soon as possible.
