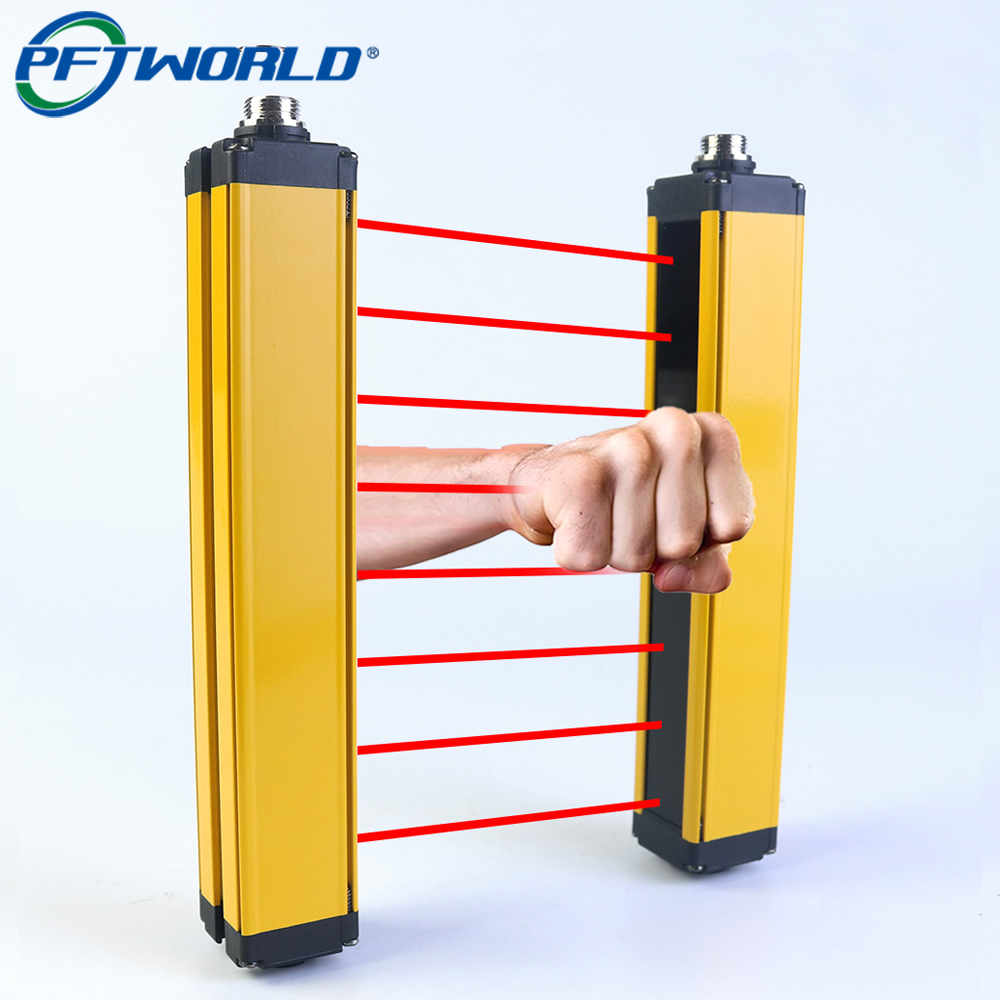

Reduce machine accidents and ensure operator safety with reliable Type 4 Safety Light Curtains.

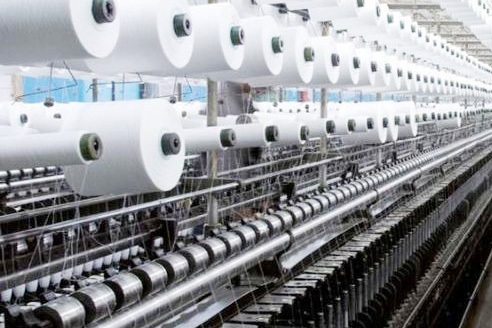

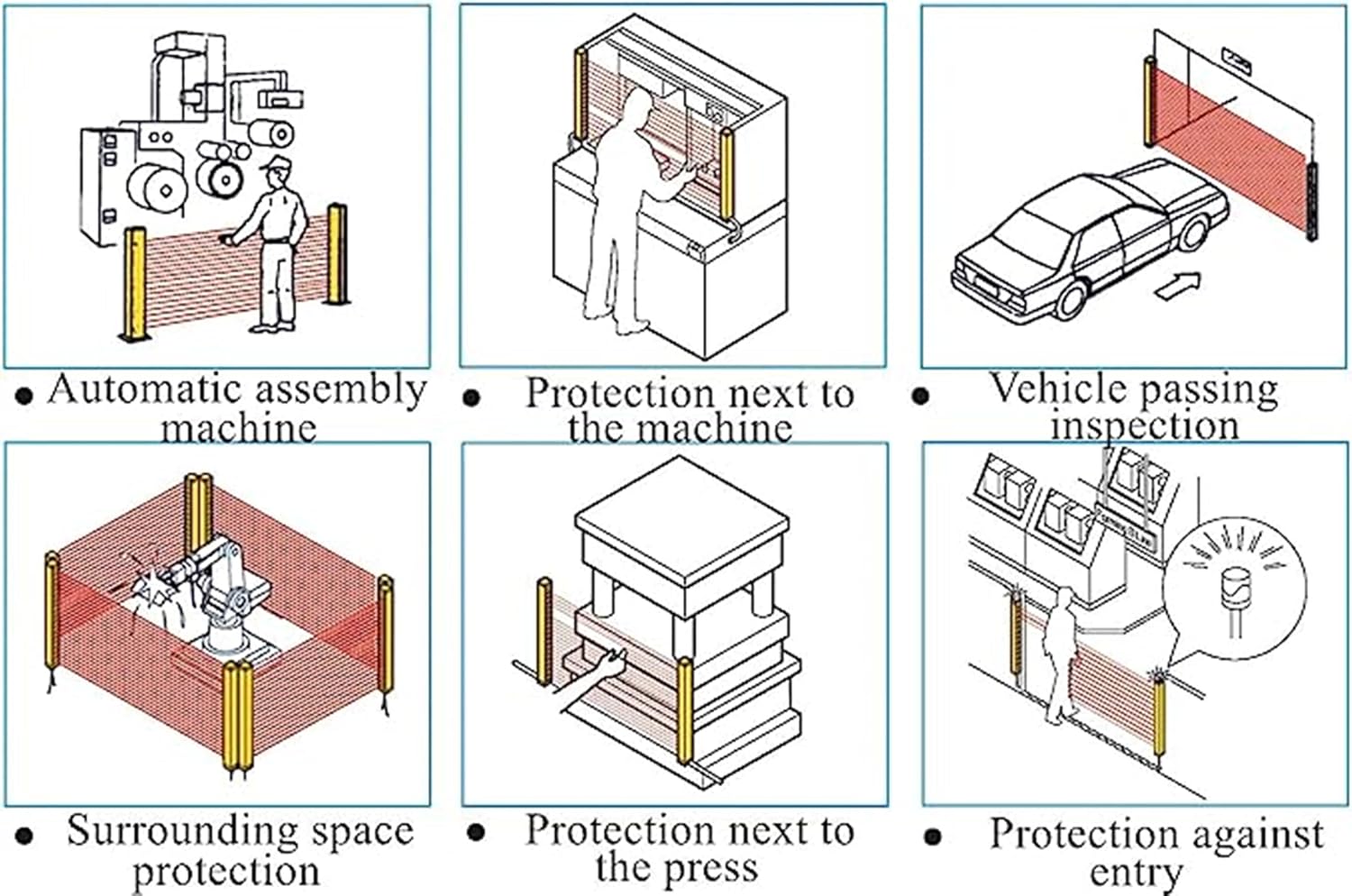

WIDE APPLICATIONS: Reliably protect people or objects in paper machinery, leather machinery, woodworking machinery, injection molding machine, forging machine, punching machine tools, security monitoring etc. Mainly used for the pipeline restricted area, bending machine, injection molding machine, stereo garage and other dangerous equipment.
| Specification Detail | |
|---|---|

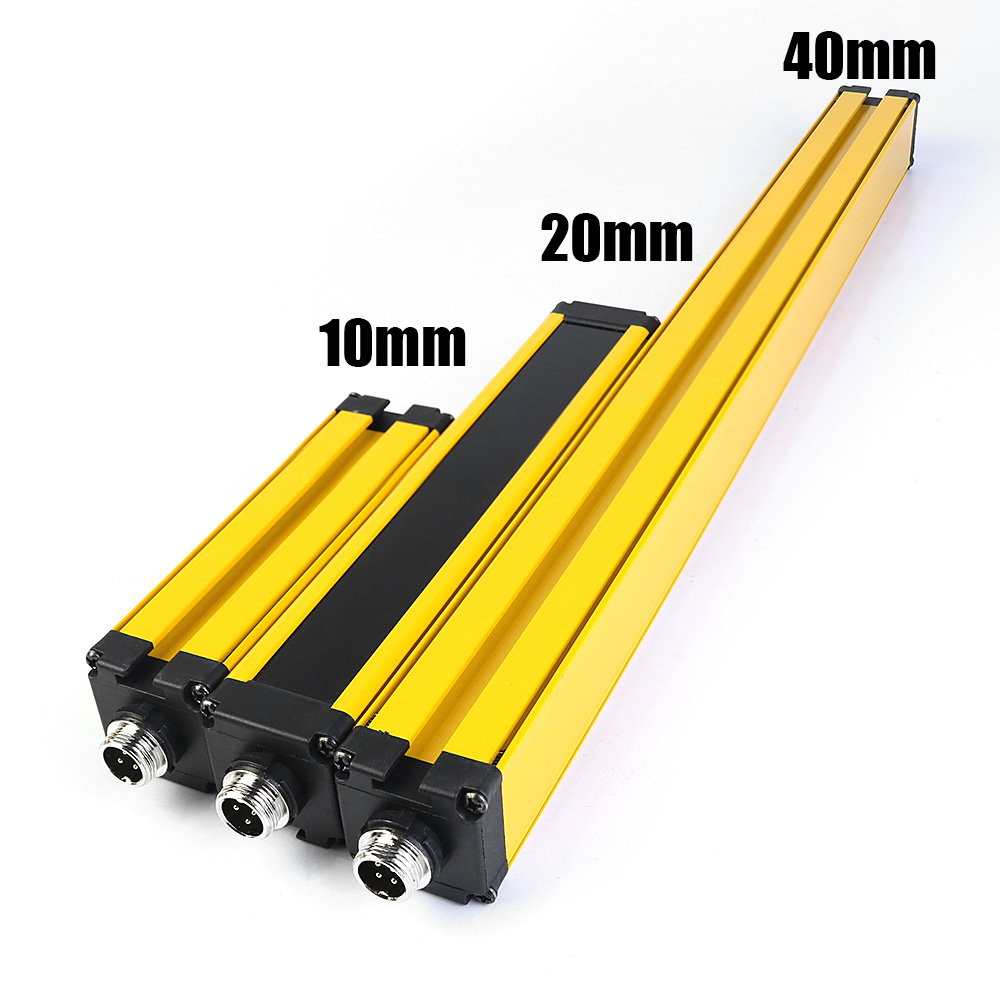

| Beam Pitch | 10mm/20mm/40mm |
| Number of Optical Axes | 4,6,8,10,12...66 (Customizable) |

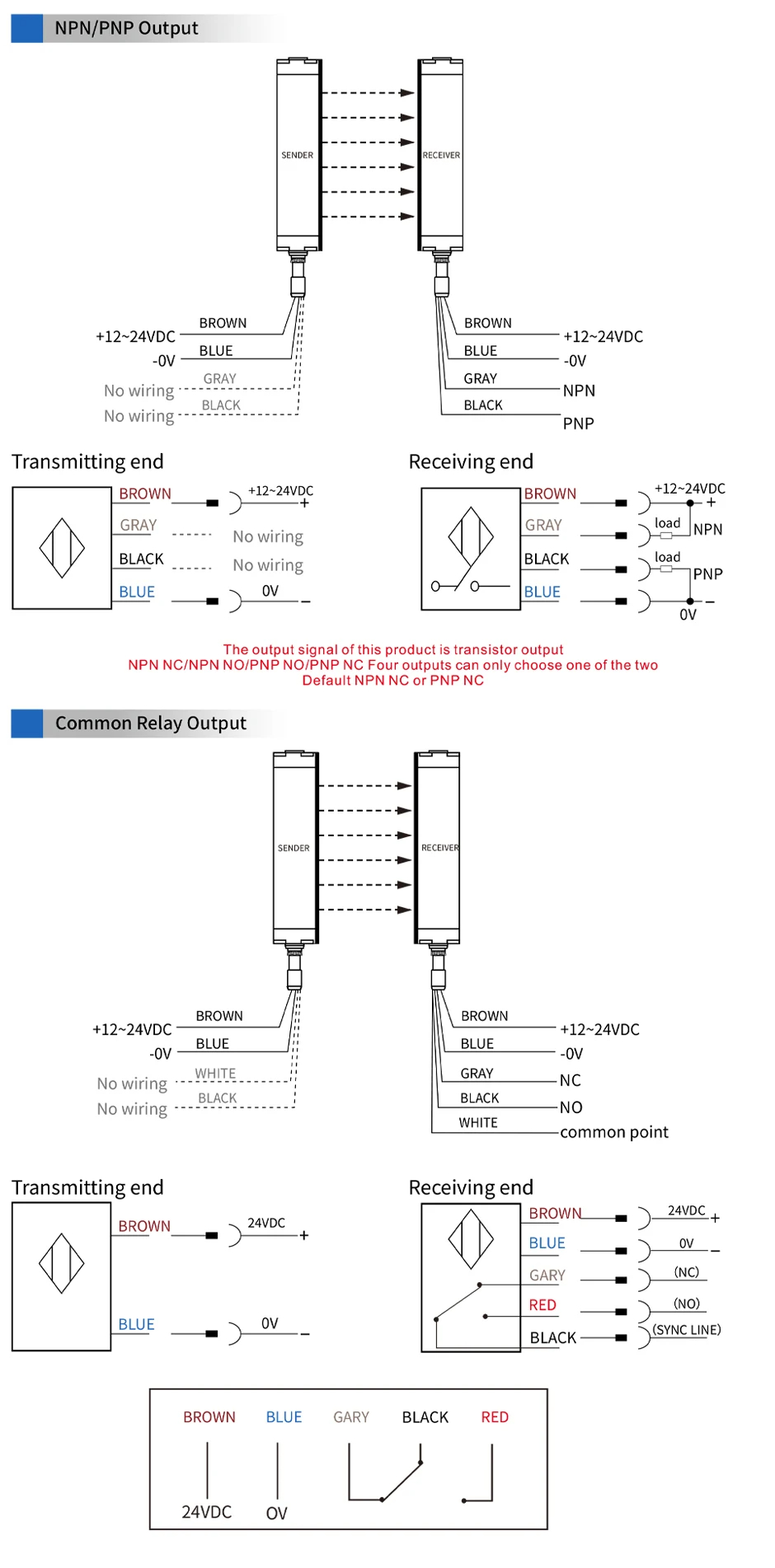

| Type of Output | NPN/PNP |

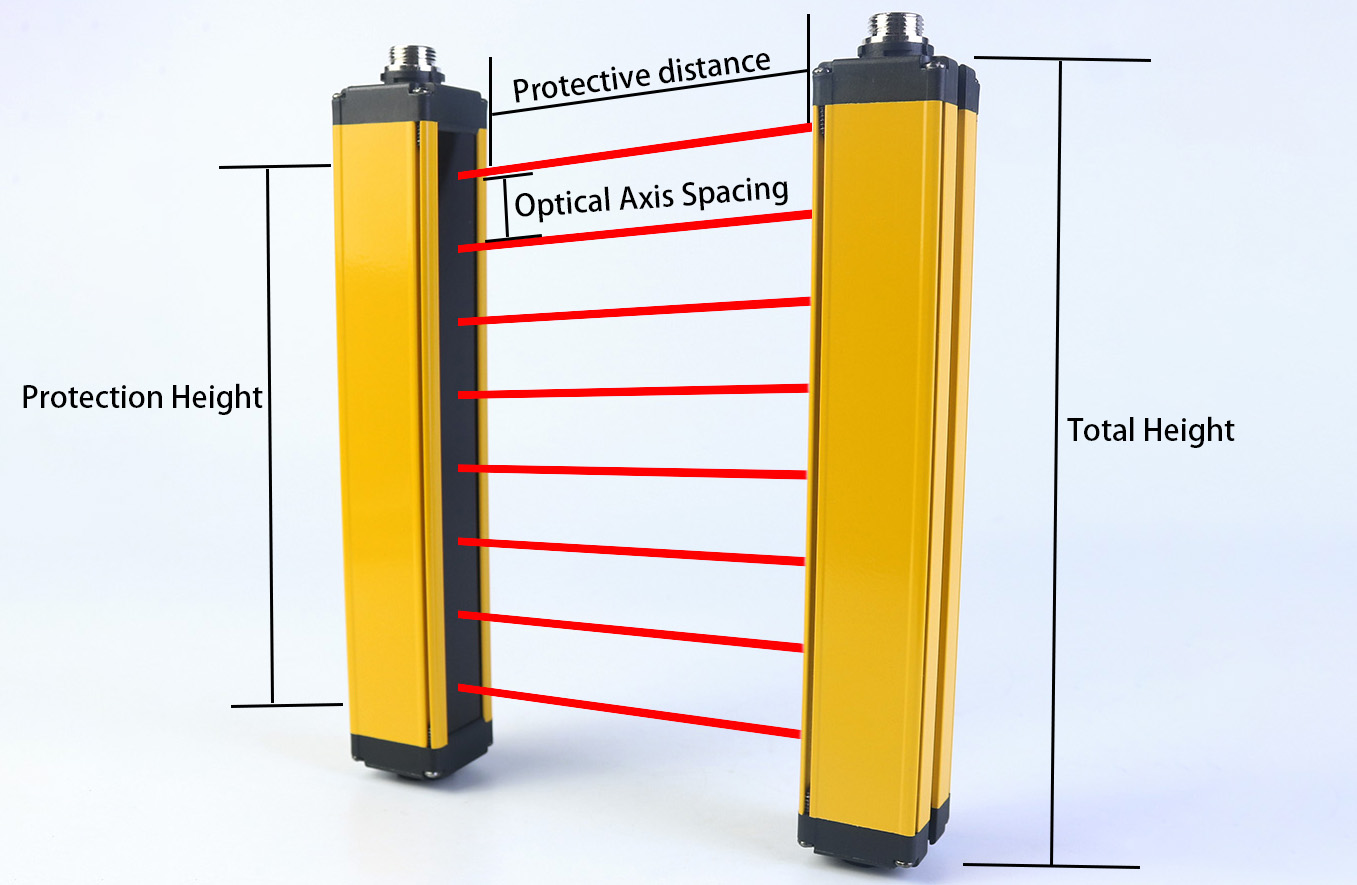

| Protection Height | 30mm~2480mm (Customizable) |
| Operation Temperature | -10~+55℃ |
| Working Humidity | Relative humidity <85% at a temperature of 20℃ |
| Response Time | ≤10ms |
| Insulation Resistance | ≥100MΩ |
| Anti Light Interference | 10000Lux |
| Output Current | ≤200mA |
| Operating Voltage | DC12-24V |
| Protection Grade | IP65 |
| Detection distance | 0.2-3m |
| Number of Beams | Beam Pitch (20mm) | Beam Pitch (40mm) | ||
|---|---|---|---|---|
| Protection Height (mm) | Shell Height (mm) | Protection Height (mm) | Shell Height (mm) | |
| 4 | 60 | 130 | 120 | 200 |
| 6 | 100 | 170 | 200 | 280 |
| 8 | 140 | 210 | 280 | 360 |
| 10 | 180 | 250 | 360 | 440 |
| 12 | 220 | 290 | 440 | 520 |
| 14 | 260 | 330 | 520 | 600 |
| 16 | 300 | 370 | 600 | 680 |
| 18 | 340 | 410 | 680 | 760 |
| 20 | 380 | 450 | 760 | 840 |
| 22 | 420 | 490 | 840 | 920 |
| 24 | 460 | 530 | 920 | 1000 |
| 26 | 500 | 570 | 1000 | 1080 |
| 28 | 540 | 640 | 1080 | 1160 |
| 30 | 580 | 650 | 1160 | 1240 |
| 32 | 620 | 690 | 1240 | 1320 |
| 34 | 660 | 730 | 1320 | 1400 |
| 36 | 700 | 770 | 1400 | 1480 |
| 38 | 740 | 810 | 1480 | 1560 |
| 40 | 780 | 850 | 1560 | 1640 |

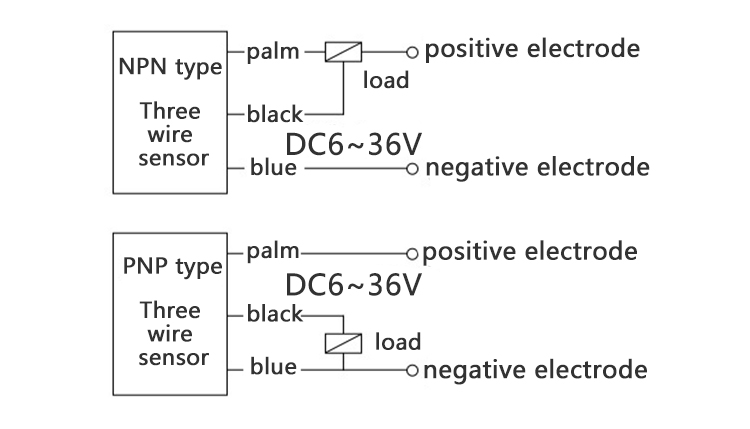

When metal objects are not sensed, the contact points are always in a disconnected state.
When sensing a metal object, the contact is always in a closed state.
When metal objects are not sensed, the closed contacts are always in a closed state.
When sensing a metal object, the contact is often closed and always in a disconnected state.

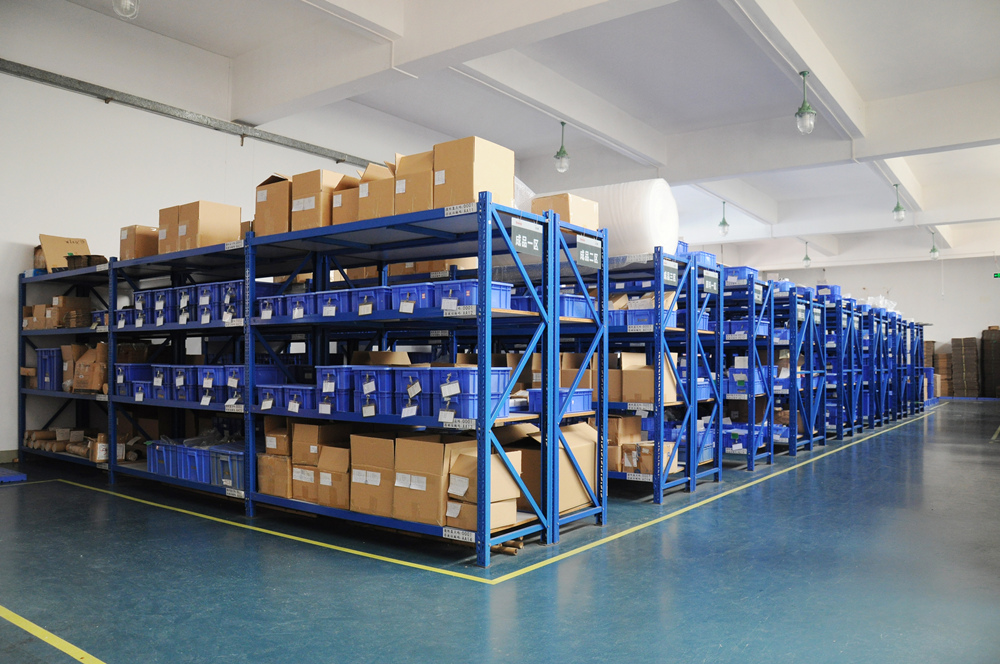

We will customize suitable cartons for packing and also accept custom packaging configurations. For example, we can customize packaging with your logo (requires extra printing cost).
