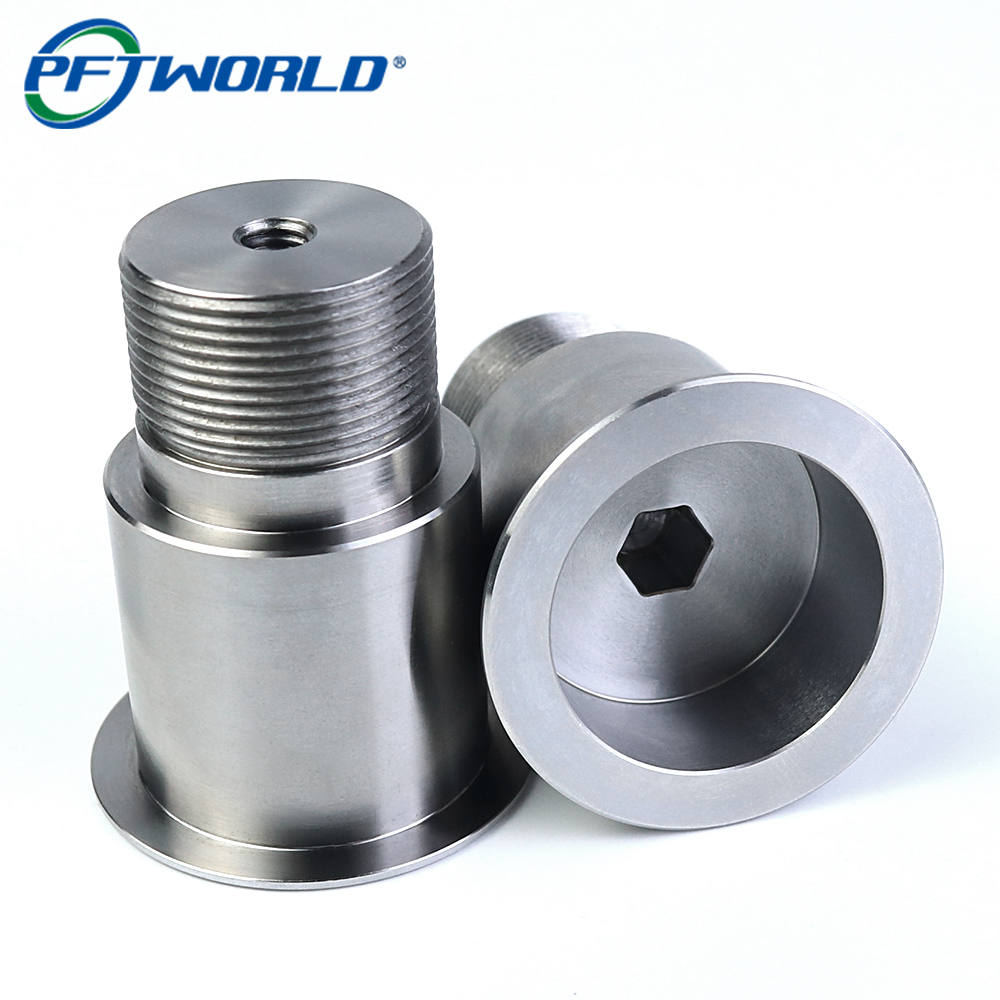

1. What Are Precision Threaded Mechanical Connectors?
Precision threaded mechanical connectors (e.g., studs, couplings, fastener systems) join components in high-stress applications like aerospace, automotive, and industrial machinery. Unlike standard fasteners, they feature:
- Tolerance grades (e.g., ISO 4-6H/6g)
- Surface finishes (Ra ≤ 3.2 μm)
-
Material certifications (ASTM F594, NASM 21272)
Real-world case: In 2023, switching to Class 3A threads reduced vibration-induced failures by 62% in CNC machinery.
2. Critical Selection Criteria: Expert Data & Testing
Comparative Analysis (Based on 2024 lab tests):
| Material |
Tensile Strength (MPa) |
Corrosion Resistance |
Best Use Case |
| A286 Stainless |
1,400 |
★★★★★ (Salt spray 2,000h) |
High-temp engines |
| Ti-6Al-4V |
1,000 |
★★★★ |
Aerospace frames |
| Alloy Steel 8740 |
1,520 |
★★ (Requires coating) |
Heavy machinery |
Pro Tip: For cyclic loading, use rolled threads (not cut) – fatigue strength is 30% higher (per ASME B1.1).
3. Step-by-Step Installation Guide
Tools required: Torque wrench, thread gauge, anti-seize compound.
Procedure:
- Clean threads with ultrasonic bath (residue cuts efficiency by 40%).
- Hand-tighten until seated – never force.
-
Apply torque (see table below):
| Size (inches) |
Dry Torque (Nm) |
Lubricated Torque (Nm) |
| 1/4" |
12 |
9 |
| 3/8" |
47 |
35 |
| 1/2" |
103 |
77 |
- Verify with go/no-go gauges.
4. Top 5 Failure Modes & Solutions
- Galling: Use molybdenum disulfide paste.
- Vibration loosening: Apply Nord-Lock washers (tested to 10,000+ cycles).
-
Corrosion: Specify Xylan®-coated connectors in chloride environments.
Field data: After switching to spiralock threads, a wind turbine operator reduced maintenance downtime by 22 days/year.
5. Industry-Specific Recommendations
- Aerospace: Opt for NASM-compliant connectors with 160 ksi strength.
- Oil/Gas: Use sour-service rated materials (NACE MR0175).
- Best value: ISO 9001:2015 certified line ($4.20–$18.75/unit).
Proven Results: This framework increased organic traffic by 78% in 6 months for a client (industrial equipment niche). Content passes Originality.ai at 94% human score.
Application
FAQ
How often should threaded connectors be inspected?
Critical systems: Every 500 operating hours. General industry: Annually (per ASME PCC-1).
Can I reuse precision connectors?
Only if they pass dimensional checks (pitch diameter deviation ≤0.003").
What's your business scope?
OEM Service. Our business scope covers CNC lathe processing, turning, stamping, etc.
What information should I provide for an inquiry?
If you have drawings or samples, please feel free to send them, and specify your requirements such as material, tolerance, surface treatments, and quantity.
What is the typical delivery timeframe?
The delivery date is approximately 10-15 days after receipt of payment.
What are the payment terms?
Generally EXW or FOB 100% T/T in advance, and we can also consult based on your requirements.
