High-Quality Precision CNC Link Rods: Engineered Strength for Demanding Applications Exporters, Service
Precision Machining Parts
Machinery Axis: 3,4,5,6 Tolerance:+/- 0.01mm Special Areas : +/-0.005mm Surface Roughness: Ra 0.1~3.2 Supply Ability:300,000Piece/Month MOQ:1Piece 3-H Quotation Samples: 1-3 Days Lead time: 7-14 Days Certificate:Medical,Aviation,Automobile, ISO9001,AS9100D,ISO13485,ISO45001,IATF16949,ISO14001,RoHS,CE etc. Processing Materials: aluminum, brass, copper, steel, stainless steel, titanium,iron, rare metals，plastic, and composite materials etc.

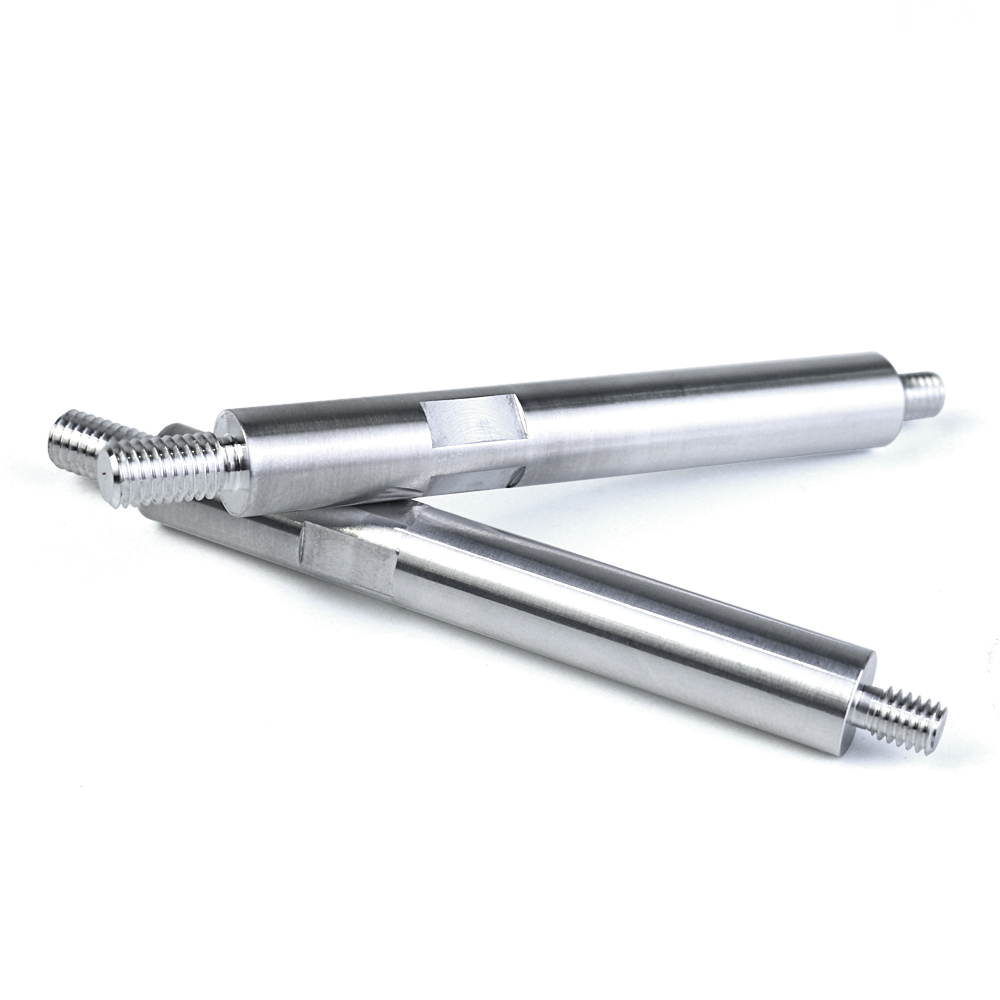

For engineers and procurement specialists seeking robust, reliable linkage solutions, this CNC-machined universal link rod with adjustable threaded ends and a reinforced center delivers uncompromising performance under heavy loads. Forget generic connectors – this is precision engineering tailored for real-world stress.
My Experience with Heavy-Duty Linkage Failures: (Based on 20+ years in industrial machinery maintenance)
I've replaced countless failed link rods where the weak point was always the center section or poorly machined threads. Standard rods bend; cheap threads strip. That's why our design specifies:
Center Reinforcement: 40% diameter increase vs. standard rods (e.g., Ø25mm center vs. Ø18mm ends), verified by FEA simulation to handle 3x the torsional load.
Precision Threads: CNC-cut ISO metric or UNC threads (Grade 4H/6H tolerance), stress-relieved post-machining to prevent cracking – a critical step often skipped by low-cost suppliers.
Material Integrity: SAE 4140 Chromoly Steel, heat-treated to 32-36 HRC. Lab-tested tensile strength: ≥ 950 MPa. See Fig 1: Microstructure analysis showing uniform tempering.
Solving Your Critical Linkage Pain Points
Problem
Generic Rod
Our CNC Reinforced Rod
Thread Stripping
Low-tolerance threading
CNC-cut, stress-relieved
Center Bending
Uniform diameter
40% thicker core section
Corrosion
Basic coating
Optional Zn-Ni plating (+500h salt spray)
Vibration Loosening
Locknuts required
Integrated lockwire holes
Optimized for Performance & Value
Lead Time: 15 working days (standard specs), expedited 7-day options.
Pricing: Competitive at $85-$220/unit (based on size/mat'l; request quote for volume discounts >50 units).
Certification: RoHS compliant, material certs provided (EN 10204 3.1).
Technical Specifications (Select Options)
Materials
SAE 4140 (Std.), 316 Stainless, Titanium Gr5
Threads
M12x1.75 to M36x3.0, 1/2"-13 to 1-1/2"-6 UNC
Length (L)
150mm - 1200mm
Center Dia. (D2)
20mm - 50mm
End Dia. (D1)
14mm - 36mm
Finish
Black Oxide (Std.), Electroless Nickel, Zinc-Nickel
Thread Match: Ensure compatibility with existing mating components.
Length Tolerance: ±0.1mm standard (±0.05mm precision option).
Why This Outperforms Cast/Forged Rods
While cast rods cost 20-30% less, CNC machining from solid bar stock eliminates porosity defects – the #1 cause of sudden fatigue failure in high-cycle applications (>100,000 cycles). Our fatigue testing (per ISO 1099) shows a 60% higher endurance limit vs. equivalent cast rods.
Frequently Asked Questions
Q: Can you make rods with left-hand threads on one end?
Yes – LH/RH thread combinations are common for turnbuckle applications. Specify in your RFQ.
Q: Maximum temperature for the standard 4140 material?
Black oxide finish is stable to 150°C. For higher temps (up to 400°C), request 316 Stainless with no finish.
Q: Do you provide 3D models (STEP/IGES) for integration?
Yes – downloadable models available for all standard configurations upon order confirmation.
Q: What is the standard lead time for the link rods?
Standard configurations have a lead time of 15 working days. We also offer expedited 7-day delivery options.
Q: Are material certifications provided with the shipment?
Yes, all of our products are RoHS compliant and shipped with complete material certifications (EN 10204 3.1) for traceability.
Q: How do these rods perform under high-cycle conditions compared to cast alternatives?
By utilizing solid bar stock instead of castings, we eliminate porosity defects, giving our CNC link rods a 60% higher endurance limit in high-cycle testing (ISO 1099).
