Motorized linear stages represent the backbone of contemporary precision engineering, micro-positioning, and automated systems. At their core, these sub-micron translation systems translate rotary motion from a motor—or directly utilize linear drive mechanisms—to produce highly controlled linear motion. The performance of a motorized stage is determined by three core components: the guiding system, the driving mechanism, and the feedback loop control.
Guiding Systems: Linear rails act as the guide vector. Standard options include recirculating ball bearing guides, cross-roller bearings (offering superior stiffness and line contact), and air bearings. Air bearings represent the pinnacle of positioning technology, eliminating friction entirely through a pressurized layer of air, achieving zero stick-slip and sub-nanometer flatness deviation.
Drive Mechanisms: Precision ground ball screws provide excellent force transmission and high efficiency for long travel ranges. For applications requiring rapid acceleration and maximum throughput without mechanical wear, linear motors (specifically ironless linear motors) are selected due to their direct-drive configuration, which eliminates backlash completely.
When selecting or customizing a motorized linear stage for high-end applications like semiconductor lithography or fiber alignment, engineers must evaluate specific deviation vectors:
Aligning sub-micron positioning solutions with the demands of Industry 4.0, advanced semiconductor fabrication, and biotechnology automation.
Modern chip manufacturing requires extreme positioning precision. Motorized stages are utilized in wafer inspection (AOI), mask alignment, and EUV lithography systems. Stages must operate in high-vacuum environments and be composed of low-outgassing materials (like specially treated black anodized aluminum or ceramic-coated substrates) to prevent wafer contamination.
Fluorescence imaging, gene sequencing, and cell manipulation require smooth velocity control and high-accuracy step-and-scan profiles. Our stages incorporate optical linear encoders to ensure absolute positioning accuracy during multi-day imaging cycles, preventing sample drift.
Aligning single-mode optical fibers requires sub-micron tolerances. Multi-axis motorized linear stages provide automated spatial search algorithms to optimize coupling efficiency, while our robust design withstands the vibrations and ambient conditions of aerospace testing labs.
Established as a global trade force in 2014, Shenzhen Perfect Precision Products Co., Ltd has evolved into an ISO9001 certified manufacturing plant specializing in ultra-precision metal components and motion stage subsystems. Through decades of machining innovation, we transitioned into a fully integrated digital chemical plant in 2021, operating from an expanded 10,000-square-meter facility with over 70 highly specialized technical engineers and operators.
We leverage advanced multi-axis CNC technology (3-axis, 4-axis, 5-axis, and 6-axis systems) to achieve mechanical tolerances down to +/- 0.002 mm on custom linear stage guide plates, motor mounts, and carriage blocks, keeping surface roughness at Ra 0.1~3.2 for minimum friction and maximum alignment stability.
A comprehensive array of manufacturing methods to build structural bases, carriages, and drives for customized motorized linear stages.

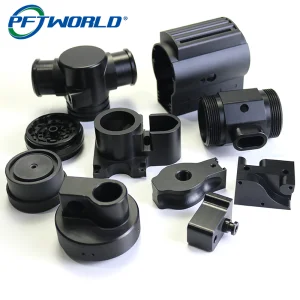

High-speed 3, 4, and 5-axis vertical machining centers perfect for precision motorized stage chassis and top plates.
Precision lathe work generating sub-micron tolerances on drive shafts, connectors, coupler adapters, and bearings.
Combined operations allowing complex cylindrical stage components to be machined in one single setup, minimizing tolerance stackup.
Enclosures, laser guards, brackets, and structural frames designed for cleanroom environments and laboratory setups.
Heavy structural bases cast in iron or high-density alloys to provide dampening blocks for high-acceleration linear motor stages.
High-integrity forged alloys with optimized grain alignment, recommended for aerospace-grade stage applications.
High-precision injection tooling for production of polymer components used inside medical stage assemblies.
Rapid prototyping of complex internal flow channels for cleanroom vacuum chucks and specialized stage end-effectors.
We deploy advanced inspection systems to guarantee that every linear guide and stage assembly matches sub-micron parameters.
Equipped with multi-axis milling capability to handle the most demanding mechanical designs.
Direct volumetric testing verifying positional deviation down to micron levels.
High-precision optical profile analysis for complex thread contours and geometries.
Engaging our multi-disciplinary engineering support team around the clock for global assistance.
ISO 9001:2015
AS9100D Aerospace
IATF 16949 Automotive
ISO 13485 Medical
ISO 14001:2015
ISO 45001:2018
Technical limits for custom OEM/ODM motorized linear stages, developed with precision design criteria.
| Parameter Profile | Standard Range Capabilities | Ultra-Precision/Custom Range Limits | Applicable Materials & Methods |
|---|---|---|---|
| Unidirectional Repeatability | ± 0.5 µm to ± 1.5 µm | ± 0.05 µm (50 nanometers) | Optical Encoded Linear Stage / Granite Base |
| Straightness / Flatness Deviation | 3 µm to 5 µm per 100 mm | < 0.5 µm per 100 mm | Precision Ground Cross-Roller Bearings / Air Bearings |
| Load Capacity (Horizontal) | 10 kg to 50 kg | Up to 250 kg | Cast Iron base with reinforced structural ribbed rails |
| Surface Roughness (Ra) | Ra 0.8 µm to 1.6 µm | Ra 0.1 µm | Ultra-precision CNC grinding & diamond fly-cutting |
| Environment Adaptability | Standard Lab Atmosphere | High Vacuum (10^-6 Torr) & Cleanroom Class 100 | Electropolished stainless steel, fluorocarbon lubricants |
The next phase of motorized linear stage development revolves around integrating advanced smart-feedback architectures directly into the motion controllers. Standard systems utilize simple step-and-direction signals, but next-generation manufacturing platforms rely on real-time Ethernet protocols (such as EtherCAT) to report motor status, position deviations, and vibrational anomalies via sensor integration. This predictive maintenance loop actively prevents thermal deformation from causing microscopic alignment drift.
Furthermore, we are actively expanding the integration of direct-drive brushless linear motors. By avoiding the friction, backlash, and mechanical compliance inherent in belt and ball screw drives, these direct-drive stages achieve velocities up to 3000 mm/s and accelerations reaching 5G, maintaining precise sub-micron settle times. This satisfies the critical demand from global electronics manufacturers looking to speed up high-density pick-and-place automation and semiconductor inspection systems.
Transparent production reporting and QA data collection build long-term confidence with our global industrial partners.
We believe that visual quality checks at every production stage prevent costly assembly issues. Utilizing advanced digital dashboards and automatic tracking across our plant, our clients receive full material validation certificates, dimensional CMM test records, and alignment performance data before the final shipment leaves Shenzhen.
Our customers include research institutes, medical scanner manufacturers, and precision optics assembly houses. Every stage delivered undergoes a final 24-hour run-in test to guarantee structural reliability and avoid premature component wear.
"Integrating Shenzhen Perfect Precision's customized linear rail assemblies into our optical scanner subsystem reduced volumetric positioning drift by over 40%." – Senior Systems Integrator
