Explore our premium custom parts and assemblies engineered to meet micrometric tolerances across medical, aerospace, and automation sectors.
Established with a dedicated foreign trade group in 2014 and validated by strict ISO9001 quality system certification, Shenzhen Perfect Precision Products Co., Ltd has evolved into a global benchmark for sub-micron precision manufacturing. Awarded the title of Guangdong Contract and Trustworthy Enterprise in 2018, and validated as a national high-tech enterprise with an integrated intellectual property management system in 2019, we continue to push the boundaries of design.

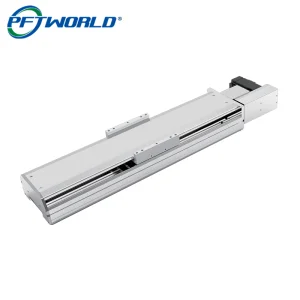

By 2020, our state-of-the-art facility expanded to 10,000 square meters, supported by an advanced digitalized chemical plant infrastructure by 2021. Today, we utilize our extensive engineering expertise to manufacture customized ODM linear stage modules, motion control actuators, and multi-axis gantry assemblies that enable high-precision alignment across automated industries worldwide.
Years of Motion Experience
Advanced CNC Machinery Units
Global Brands Served
Monthly Supply Capacity
Our comprehensive production capabilities bridge the gap between initial prototyping and scalable mass production, providing consistent reliability through diverse fabrication channels.
The positioning components market is undergoing a rapid transition toward sub-micron accuracy, driven by advances in semiconductor manufacturing, automated optical inspection (AOI), and miniaturized biotechnology instrumentation. Modern production floors demand greater throughput and efficiency, positioning the linear module not just as a mechanical guide, but as a critical, smart feedback loop.
Contemporary linear stages are transitioning from simple passive motion mechanisms to intelligent systems integrated with temperature, vibration, and positioning sensors. This integration allows real-time diagnostics, enabling predictive maintenance schedules that prevent costly factory downtime.
With space constraints in medical diagnostics and electronics assembly, custom linear slide tables must offer compact cross-sections while supporting high dynamic load capacities. This requires specialized material selection and advanced cross-roller guide alignments.
The demand for stages capable of operating within high-vacuum chambers, cleanrooms (ISO Class 4/5), and anti-corrosive environments has increased. Using specialized anodization, non-outgassing lubricants, and stainless steel shielding is now standard industry practice.
Our ODM linear stages and customized mechanical components are machined using 3-axis, 4-axis, 5-axis, and 6-axis CNC centers. We enforce rigorous structural limits to guarantee long-term durability and motion accuracy:
| Performance Parameter | Belt-Driven Linear Stages | Ball-Screw Linear Slides | Custom Turn-Milled Components |
|---|---|---|---|
| Positioning Repeatability | ±0.04 mm | ±0.01 mm to ±0.002 mm | Up to ±0.005 mm |
| Maximum Travel Stroke | 50 mm - 3050 mm | 50 mm - 1500 mm | Application Dependent |
| Maximum Horizontal Velocity | 2000 mm/s | 800 mm/s | N/A |
| Surface Roughness (Ra) | Ra 0.8 ~ 1.6 | Ra 0.4 ~ 0.8 | Ra 0.1 ~ 3.2 |
| Primary Materials Supported | AL6061-T6, AL7075-T6 | C5/C7 Ball Screws, GCR15 Steel | Titanium, Stainless Steel, Brass |
Global procurement heads face challenges regarding supply chain stability, material tracking, and consistent part accuracy. To mitigate these risks, our factory delivers fully transparent manufacturing records, complete mill sheets, and digital measurement charts for every batch.
We optimize our production workflows using an integrated ERP framework. This system monitors lead times closely, enabling sample deliveries within 1 to 3 days and scaled production orders within 7 to 14 days, keeping your assembly lines running smoothly.
Our engineering services deliver comprehensive, drop-in motion assemblies rather than isolated parts. We supply complex multi-axis Cartesian gantries, custom sensor housings, and laser engraving stages, complete with pre-configured cabling, motor mounts, and surface finishes.
Whether configuring belt-driven linear modules for high-speed pick-and-place tasks or utilizing high-load ball screws for heavy-duty applications, we adapt every module to your specific payload requirements, velocity curves, and duty cycles.
Our metrology laboratory uses coordinate measuring machines (CMM) and 2D measuring systems to perform comprehensive inspection routines on every shipment. From initial raw material verification to final coordinate checks, quality is built into every stage of production.
Our production facilities maintain globally recognized credentials to ensure our custom parts meet international standards for quality, safety, and performance.
We maintain end-to-end transparency, offering client video tracking options throughout the manufacturing run. This approach keeps project managers updated on material testing, machining schedules, and final tolerance reports.
To support high-speed, high-acceleration positioning requirements, our R&D roadmap focuses on developing direct-drive linear motor stages and lightweight carbon-fiber structural elements.
We are expanding our product line to include ironless linear motor actuators, providing smooth motion profiles free of cogging. This design is optimized for high-precision scanning and optical applications.
Our engineering team is testing carbon-fiber structural components to reduce carriage mass. This update aims to improve cycle times and overall system acceleration.
Future iterations of our linear modules will offer absolute optical and magnetic encoders with sub-micron resolutions. This integration will eliminate the need for homing cycles upon system start-up.
Find answers to common questions about our custom linear stage modules, manufacturing tolerances, and delivery processes.
Our customer support team is available to assist with component selection, material specifications, and design updates, ensuring a smooth path to production.
Our custom mechanical components are engineered to deliver reliable performance in demanding environments, including optical systems and sensor applications.
From rapid prototyping to mass-produced mechanical assemblies, our engineering team is ready to support your custom design requirements.
