A comprehensive technical analysis of magnetic sensing integration, micro-machining dynamics, and structural reliability for Tier-1 industrial buyers.
Modern industrial and automotive markets demand zero-defect reliability under extreme conditions. A Hall Effect Sensor is only as robust as the housing, mounting brackets, and transmission linkages that position it relative to the rotating magnetic targets. Thermal expansion, magnetic field attenuation, and mechanical misalignments of even 10 microns can disrupt signals, causing system failure in critical automation pathways.

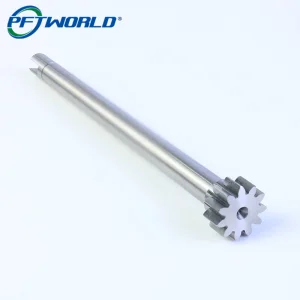

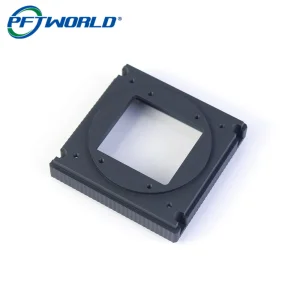

As a leading supplier with 20 years of manufacturing experience, Shenzhen Perfect Precision Products Co., Ltd. (PFT) bridges the gap between raw semiconductor sensing components and fully integrated, high-reliability mechanical assemblies. By supplying both high-grade electronic interfaces and the structural micro-machined parts—such as brass gears, black anodized aluminum frames, and POM turning parts—we ensure your magnetic sensors function at peak efficiency.
Selecting the appropriate magnetic sensing mechanism requires evaluating sensitivity, price points, and thermal stability. Below, our engineering team contrasts classic Hall Effect technology with advanced Magnetoresistive counterparts to guide your procurement strategy.
| Technology | Sensitivity | Temperature Coefficient | Ideal Application | Cost Profile |
|---|---|---|---|---|
| Unipolar/Bipolar Hall ICs | Moderate (3-10 mT) | Stable (-40°C to +150°C) | BLDC Motor Commutation, Position Detection | Highly Economical |
| Anisotropic MR (AMR) | High (~0.5 mT) | Moderate (requires comp.) | Pneumatic Cylinders, Fine Angle Encoders | Moderate |
| Giant MR (GMR) | Very High (< 0.1 mT) | Prone to thermal drift | Automotive Wheel Speed, High Gap Sensing | Premium |
| Tunneling MR (TMR) | Ultra High (pico-Tesla) | Highly Stable | Precision Bio-Medical Instruments, Space Guidance | High End |
Historically, Hall sensors measured magnetic flux purely perpendicular to the silicon die. The industry roadmap has shifted toward 3D Hall Sensors capable of measuring X, Y, and Z vector components simultaneously. This allows for full 360-degree rotational sensing and linear stroke detection using a single chip, drastically reducing component count and bill-of-materials (BOM) complexity for automotive steering columns and joystick controls.
PFT custom-machined products and integrated sensor structures satisfy strict sector-specific certifications, matching the tolerances and material regulations required by high-stakes operations.
Certified under IATF 16949:2016, we supply structural sensor brackets, throttle position housings, and speed sensor armatures. Able to withstand extreme engine temperatures (-40°C to +175°C) and corrosive fluids.
Compliant with AS9100D, PFT produces ultra-precise aluminum strut housings and non-contact flight control components. Tolerances are held strictly to +/-0.002mm to eliminate mechanical drift.
Holding ISO 13485:2016 certification, we process medical-grade biocompatible plastics and stainless steel structures for non-contact switches in ventilators, MRI scanners, and surgical automation tools.
Discover how Shenzhen Perfect Precision Products Co., Ltd. uses digital manufacturing networks to deliver consistent quality and low lead times.
Established in 2014, PFT expanded its headquarters in 2020 to cover over 10,000 square meters of high-tech production area. In 2021, we successfully migrated our physical machinery into a unified, digitalized cloud factory. By incorporating real-time ERP material tracking, smart machine diagnostics, and modern scheduling platforms, we have cut material waste by 22% and reduced average prototype cycles to 1-3 days.
Our workshop features advanced Multi-Axis machinery, running dedicated 3-axis, 4-axis, 5-axis, and 6-axis CNC operations. This array of equipment allows us to machine composite plastics and hardened metals into intricate gears, mounts, and protective panels. Surface finishing control ranges from Ra 0.1 to 3.2, ensuring the exact sealing surfaces needed for high-IP-rated applications.
We provide a one-stop-shop manufacturing catalog, reducing production friction and removing middlemen:
How we guarantee micro-level precision through every step of production.
Multi-axis machining centers ensure consistent dimensional accuracy for high-volume batches.
Advanced Coordinate Measuring Machines (CMM) record spatial profiles down to sub-micron tolerances.
Optical measurement systems scan flat surfaces, gears, and contours to identify anomalies.
Live engineering feedback ensures design updates are processed quickly.
Minimize procurement risks when sourcing Hall sensors and custom assemblies by following these key manufacturing checks.
For magnetic sensors, choose housing materials that avoid field interference. Non-magnetic alloys (such as brass and 6000-series aluminum) and stable plastics (like POM and PBT) are ideal. Verify anodizing thicknesses to guarantee reliable insulation and wear protection.
The distance between the sensor face and the rotating gear or magnet target dictates signal quality. Ensure your CNC supplier holds tolerances to +/-0.01mm or better to prevent signal attenuation and phase errors in high-speed applications.
Sensor structures exposed to elements must meet IP67 or IP68 protection ratings. Specify potting compounds (like polyurethane or epoxy resins) and overmolded connector interfaces during early prototype reviews.
Ensure your supplier offers rapid prototyping (1-3 days) to validate fits before scaling. Bulk production should transition within 3-4 weeks to align with assembly line rollouts.
Our production quality is validated by third-party inspectors and customer reviews, ensuring high-quality performance in active production fields.
